GeForce RTX 4060 Ti, the 1440p gaming card with DLSS and ray tracing

A GPU that delivers outstanding performance

Update: Jun 29th, 2023 00:48 CEST

NVIDIA’s graphics card reviews are not over yet. We have already tested the GeForce RTX 4080 and GeForce RTX 4090, which showed us what the new DLSS 3.0 was capable of, which came with Shader Execution Reordering, a technology that, at least in games where it is already integrated, helps to significantly increase the generation of frames per second. Now we had the chance to evaluate the GeForce RTX 4060 Ti, an ideal card for gaming at 1440p resolutions with DLSS and ray tracing.

This evaluation was performed on a PC with the following specifications:

CPU: Intel Core i9-13900K
RAM: 32 GB Kingston Fury DDR5 a 5600 Mhz
Motherboard: Z790 AORUS Elite AX
Cooling system: Aorus Waterforce X240
SSD: Kingstone Fury Renegade PCIe 4.0 NVMe M.2

GeForce RTX 4060 Ti Specifications

CUDA cores: 4352
Basic frequency: 2.31 Ghz
Modified frequency: 2.54 Ghz
Memory interface width: 128 bits
One HDMI and 3 DisplayPort
Shaders: 22 TFLOPs
RT Cores: 52 TFLOPs third-generation
Tensore Cores: 353 TFLOPS third-generation
NV Encoder: eighth generation with AV1
VRAM: 8 GB GDDR6
Memory: 32 MB L2, 288 GB/s (554 GB/s efectivos)
Average power consumption in gaming: 140 W
TGP: 160 W
PCIe generation 4
Recommended power supply: 550 W

Installation

Unlike the NVIDIA GeForce 4080 and NVIDIA GeForce 4090, this card does not require more space, so it can be installed in virtually any rack, and it integrates its 8-pin PCIe adapter cables if you do not have a power supply with a PCIe Gen 5 cable of at least 300W.

Methodology

To make it easier to read, this time we focused on 15 games with their own benchmark. Some of the titles we ran with DLSS in its latest version, for example if they had DLSS 3.0, the same case if they had frame generation technology. In cases where the game could run over 60 FPS, we ran it without DLSS. All games were run with the highest visual settings.

Results

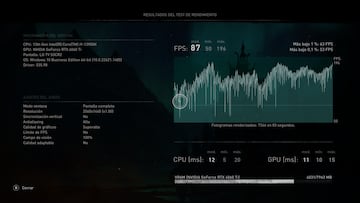

Assassin’s Creed Valhalla: 87 FPS

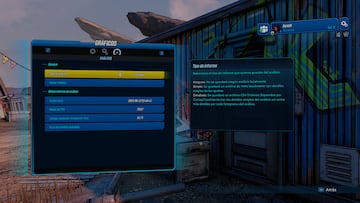

Borderlands 3: 78.67 FPS

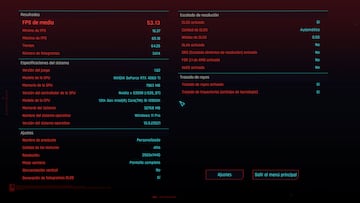

Cyberpunk 2077: 53.13 FPS

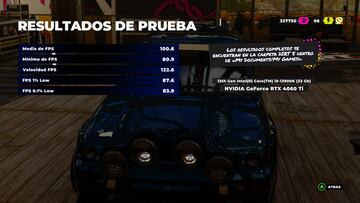

Dirt 5: 100.6 FPS

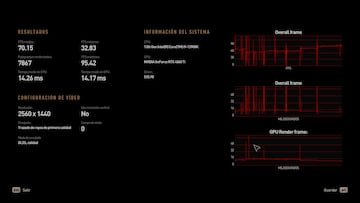

Dying Light 2: 70.15 FPS

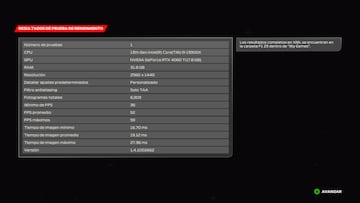

F1 23: 52 FPS

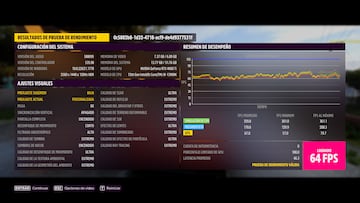

Forza Horizon 5: 64 FPS

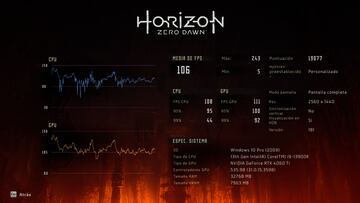

Horizon Zero Dawn Complete Edition: 106 FPS

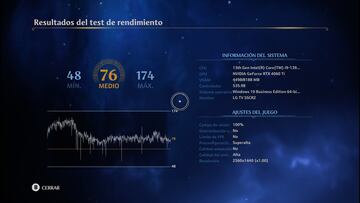

Immortals Fenyx Rising: 76 FPS

Marvel’s Guardians of the Galaxy: 66 FPS

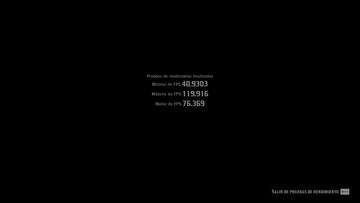

Red Dead Redemption 2: 76 FPS

Returnal: 62 FPS

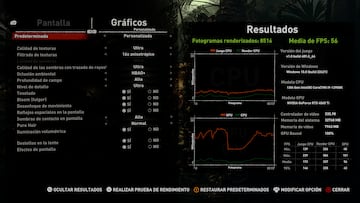

Shadow of the Tomb Raider: 56 FPS

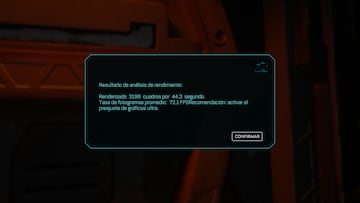

Callisto Protocol: 72.1 FPS

Watch Dogs Legion: 33 FPS

Noise and temperature

This piece of hardware never exceeded 63°C during testing with virtually no noise.

Additional Notes

The GeForce RTX 4060 Ti continues the RTX 40 family with NVIDIA Reflex, NVIDIA Broadcast, Rezisible Bar, Ansel, FreeStyle, ShadowPlay, Highlights, G-Sync, Omniverse, and virtual reality viewer compatibility.

Conclusion

The GeForce RTX 4060 Ti is one of the most solid choices for 1440p gaming with raytracing and DLSS at the highest specs to average over 60 FPS. However, if you are a Full HD gamer with a monitor that supports technologies like G-Sync, you will be able to take advantage of its low latency and frame rate generation technologies with compatible games.
